Import Music From 3rd Party Scheduler

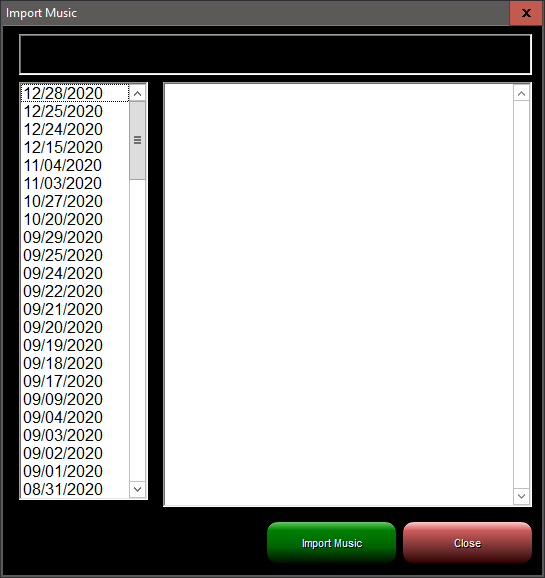

From the Scheduling Menu if you select [Import External Music] you will see the above window.
To import music from a Music Log file, highlight the day you wish to import and click the [Import Music] button.
When you are finished importing Music click the [Close] button.
Import Music Structure
· ASCII File (Text)
· Filename format is MUS_MMDDYYYY.LOG where MM is the 2 digit month, DD is the 2 digit day, and YYYY is the year.
· File needs to be saved in the ZONEDATA\Schedules\ folder. (Matching the path in the settings)
· Event format is HH[space]CCCCC where:
· HH is the hour in military time 00 through 23, followed by a single space,
· CCCCC is up to a 5 digit cart number 00001 to 31000 - leading zeroes are not mandatory.
· You need to schedule at least the same number of 9993 command cuts in the DJB Zone shell as you schedule per hour in your music scheduler.
· It is okay to have too many 9993s, but having too few will cause problems.
· {MMSS - Soft Sync, cues the item to be next to play at MMSS.
· }MMSS-Exact Time fires the item at exactly MMSS.
· !9XXX-The exclamation point preface tells Zone the 9XXX number is a command cut. !9201 will insert a commercial avail for Break 1.
Exact Times (hard and soft syncs)
You can schedule an item to be cued to be next (soft sync) or trigger at an exact time (hard sync) directly from your Music Scheduler.
HH CCCCC{MMSS Cue to be next at MMSS after the hour
HH CCCCC}MMSS Exact time: Fire at exactly MMSS in the hour.
Here is an example of what the MUS_MMDDYYYY.LOG file might contain:
Time - Cart#
00 01434}0000
00 01826
00 00957
00 01834
00 01850
00 01605
00 00305
00 !9201
00 !9201
00 !9201
00 !9201
00 01835
00 01341
00 01801
00 01761
00 01812
00 01713
00 01851
00 00338
00 00685
00 01382
00 00029
01 00247
01 01630
01 01544
01 01837
01 01840
01 01778
01 01377
01 01752
01 01755
01 01325
01 01763
01 01530
01 01843
01 01831
01 01418
01 00860
01 00141
01 00340
02 01626
02 00699
02 01797
02 00529
02 01703
