Log Editor

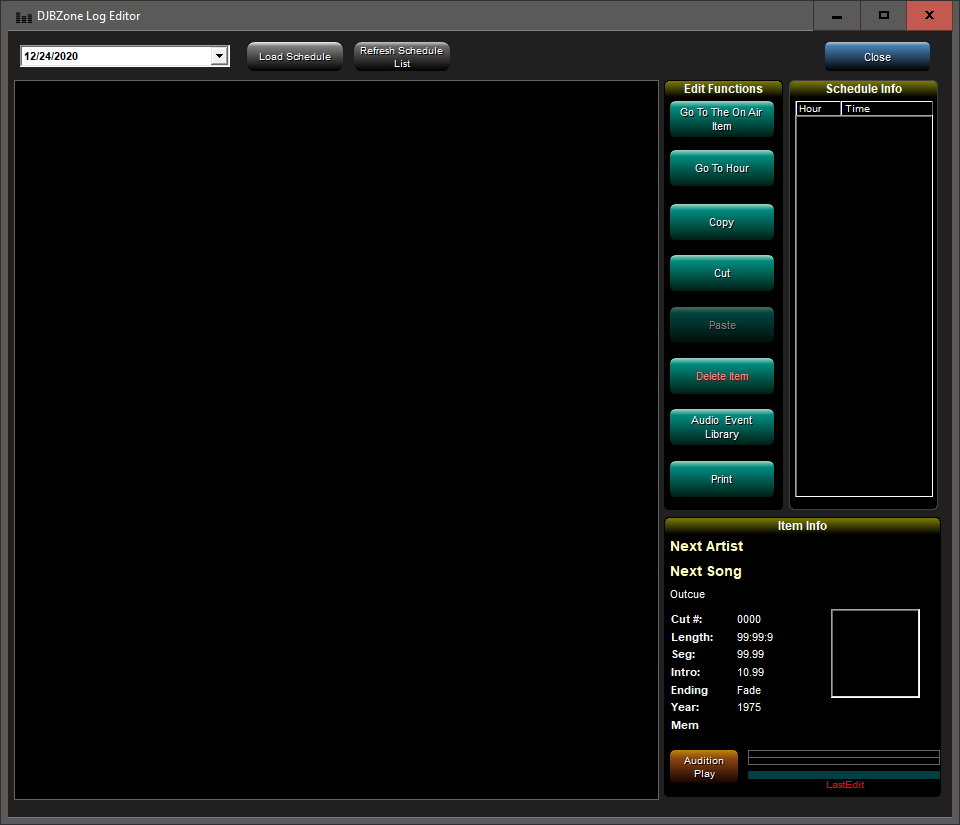

Initially when you click on Log Editor, you will be presented with the screen below.

Use the drop down box to select the date you wish to edit.

It is possible to edit the current day's log, but use caution.

WARNING: It is best practice not to have the log editor open on tomorrow's schedule after 11:30PM.

And it is always best to close any log when done editing.

Select the date you wish to edit and then click Load Schedule.

The window below is the main log editor window:

You can see from the text at the top of the editor which hour in the day and which calendar day you are editing.

Schedule Selection

The drop down box allows you to select the date to edit. Click Load Schedule to open it.

If new schedules have been added but are not in the drop down box, click Refresh Schedule List to see them.

The main Log Editor area shows you the selected schedule. The columns show you the projected air time, Audio Type, Cut Number, Artist, Title,

Intro Time, Ending Type, Duration, the Shell Number you are using and the Category of the item.

Click to close the Log Editor.

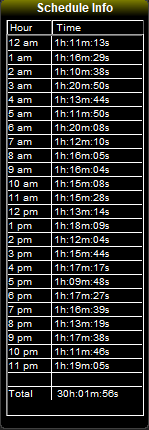

This helpful box tells you how much audio is scheduled in each hour of the current log.

It does not take into account microphone time when the automation is not running.

Try to ensure none of the automation hours is less than 60 minutes.

If you are using Command Cut 9999 to sync at the end of each hour, it is far better to be over by a few minutes.

This area shows complete Item Information about the cut selected including the album art if your are using it.

If you click Audition Play you can hear the item and see the levels.

You can click and drag on the dark teal bar to move the playback forward or backward.

Click Stop to end the audition.
